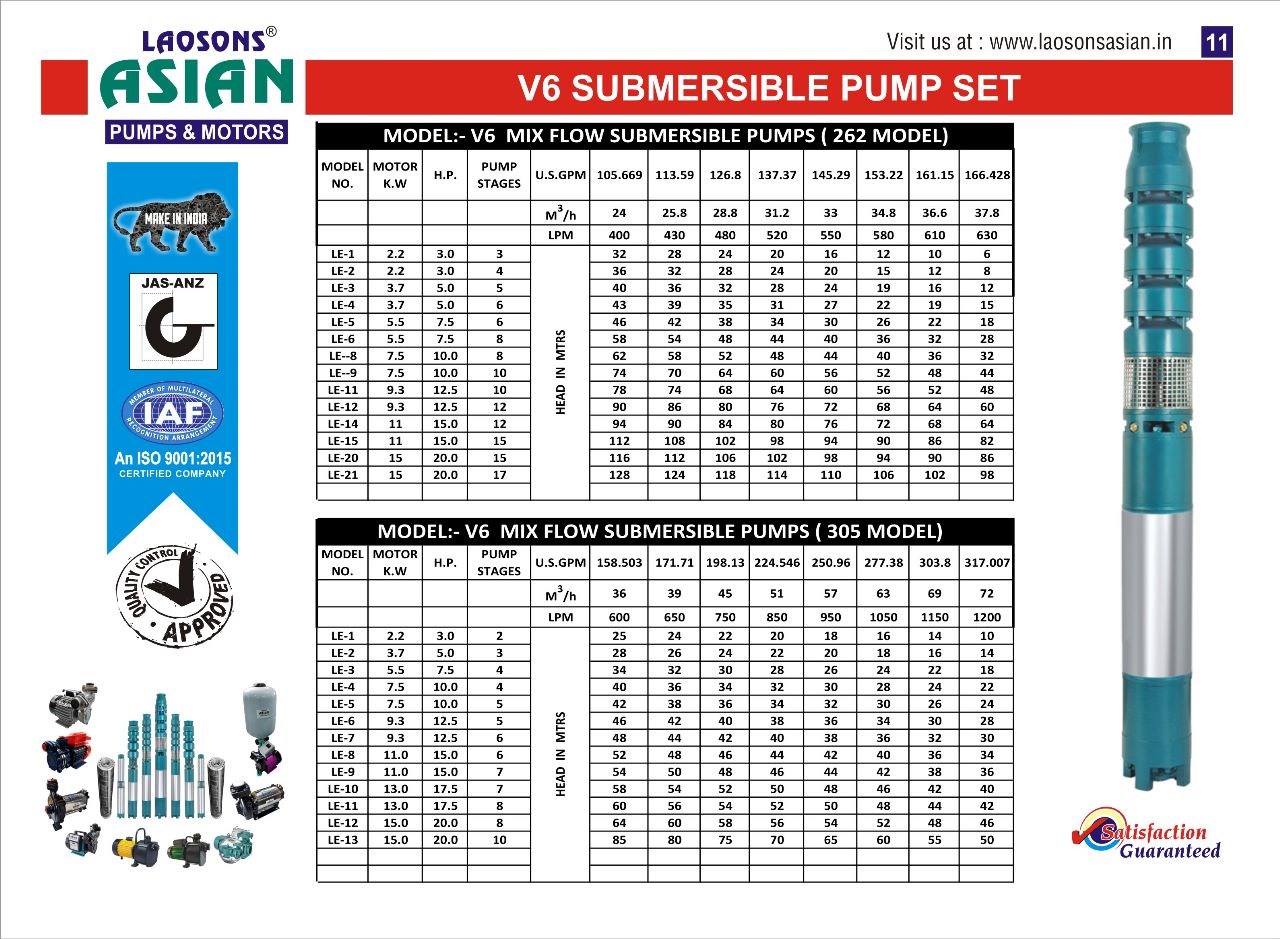

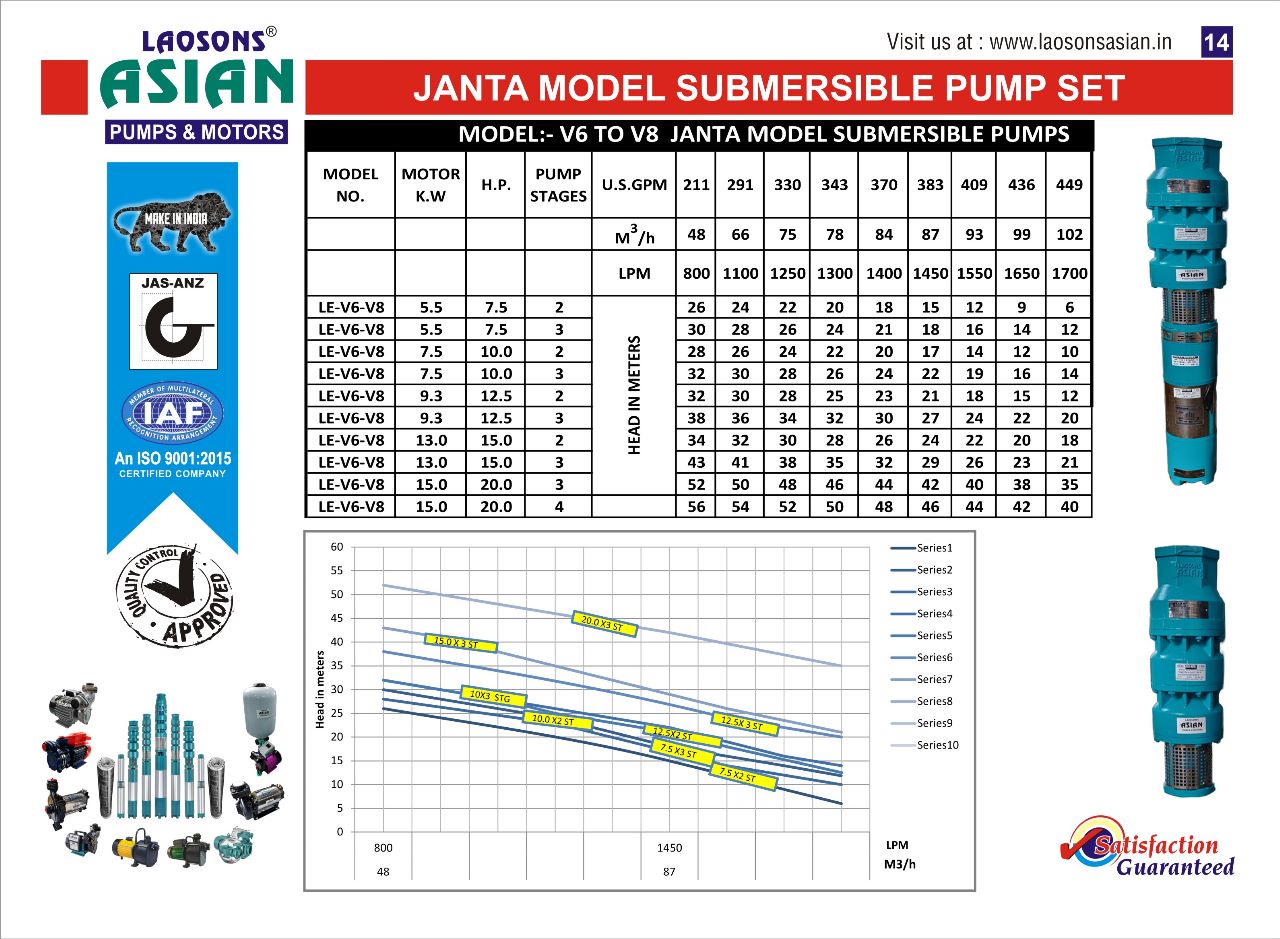

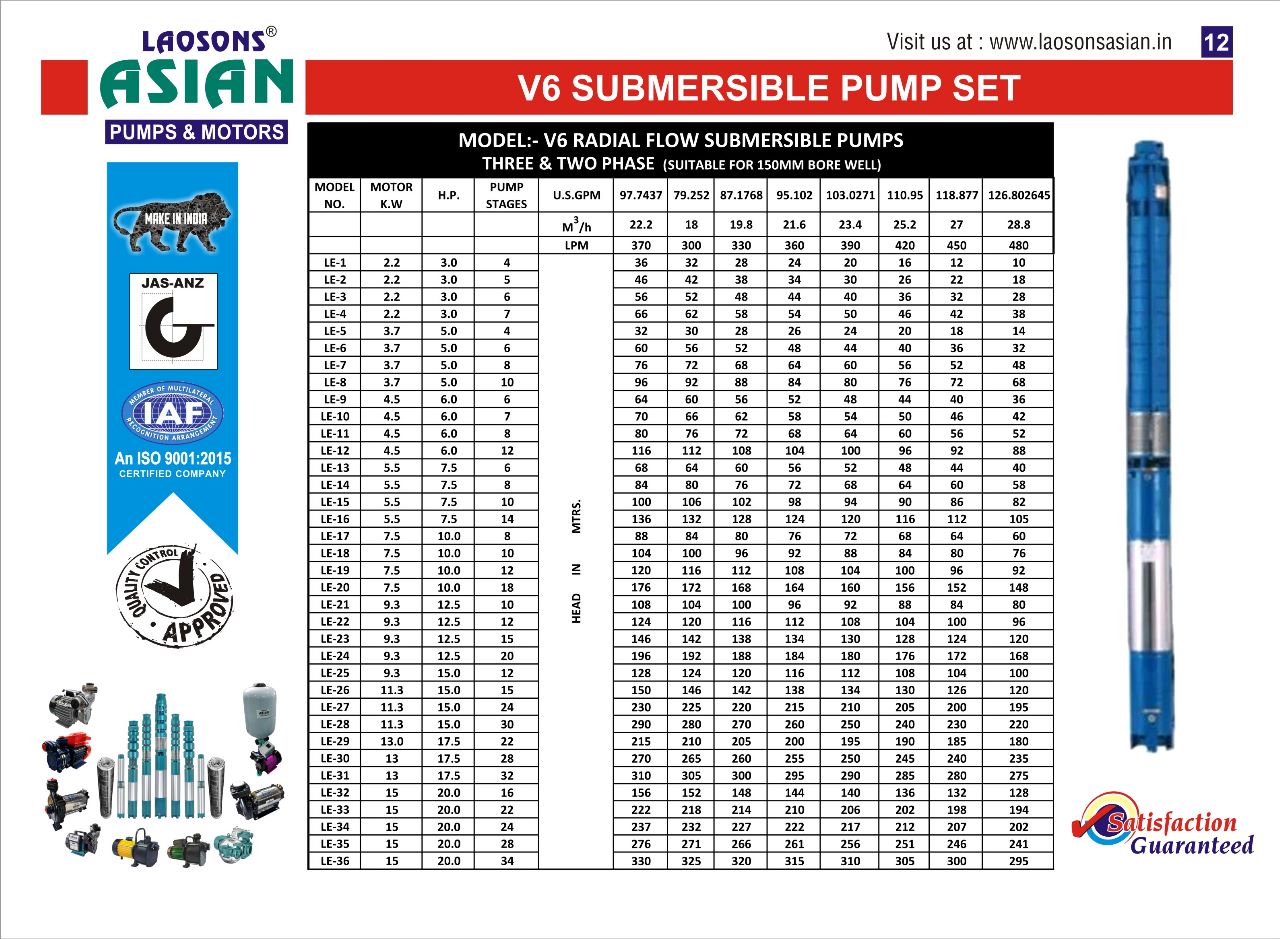

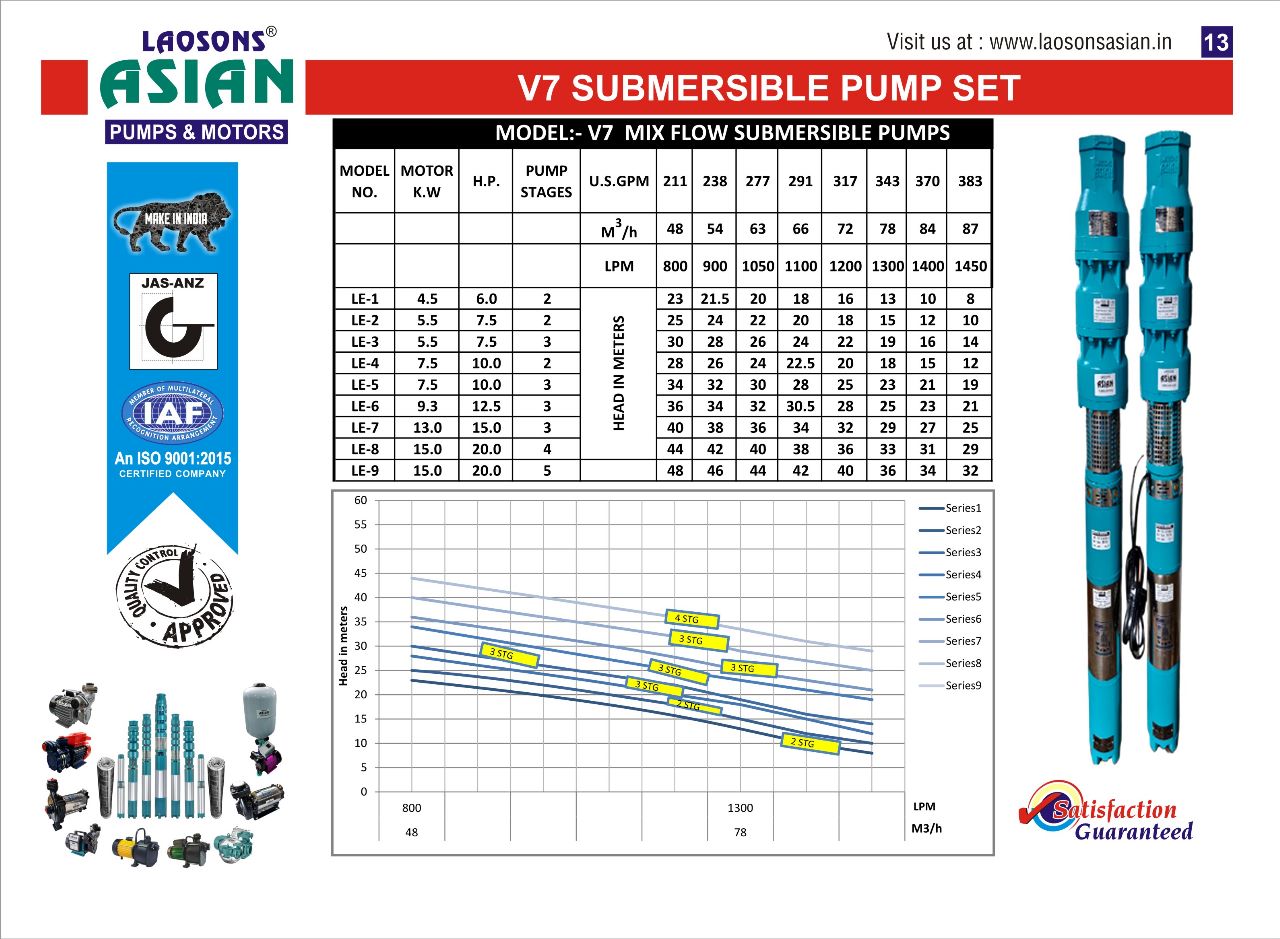

V6, V7 & V8 Submersible Pumpsets [For 6 Inch, 7 Inch & 8 Inch Borewells]

V6, V7 & V8 Submersible Pumpsets [For 6 Inch, 7 Inch & 8 Inch Borewells]

Used in Domestic Water Supply, Drip Sprinkle Irrigation, Agriculture, High Rise Buildings & Bungalows,Fountains and Industries

Constructional Details Motor Body : Stainless steel. Rotor : Powder coated , suitably baked for corrosion resistance under water , dynamically balanced for vibration-free smooth operation. Stator : Powder coated for corrosion resistance. To protect windings, thick end laminations are provided. Windings : High dielectric PVC/Polyester insulated, water cooled asperIS:8783 (Part4/Sec.1&3) Cable Sealing Arrangement : Cable glands,rubber seal and sand guard are provided to protect the motor, from ingress of borewell water and other foreign matter. Breather Diaphragm : Optimum size to compensate the volumetric variation of water inside the motor due to change in temperature. Impellers : High quality abrasion resistant Stainless steel , dynamically balanced. Bowl : Cast Iron as per FG200 Grade of IS:210. Journal Bearings : Leaded bronze / Nitrile Rubber water lubricated bushes, having high load bearing capacity. Thrust Bearings : Special self-aligning heat-treated S.S. segments are water lubricated to withstand high axial thrust load under adverse conditions. Shaft : Hard, annealed Stainless steel shaft of adequate diameter to ensure rigidity is ground to microns. Suction Casing : Provided with perforated Stainless steel strainer of adequate size to allow suction of water with minimum friction. Casing Wear Rings : High quality abrasion resistant Nitrile rubber.

Features

➤ Laosonsasianpumps Motors designed for operating under wide voltage variation.

➤ Sleeves and thrust bearings designed for longer life.

➤ Stainless steel motors,having hydraulically pressed powder coated silicon laminated stampings.

➤ Rotors and all rotating components are dynamically balanced for long bearing life and vibration-free running.

➤ After metallurgical testing, all components are manufactured on modern machines, including CNC machines for reliability and consistent quality.

➤ High quality and long life mechanical seal.
