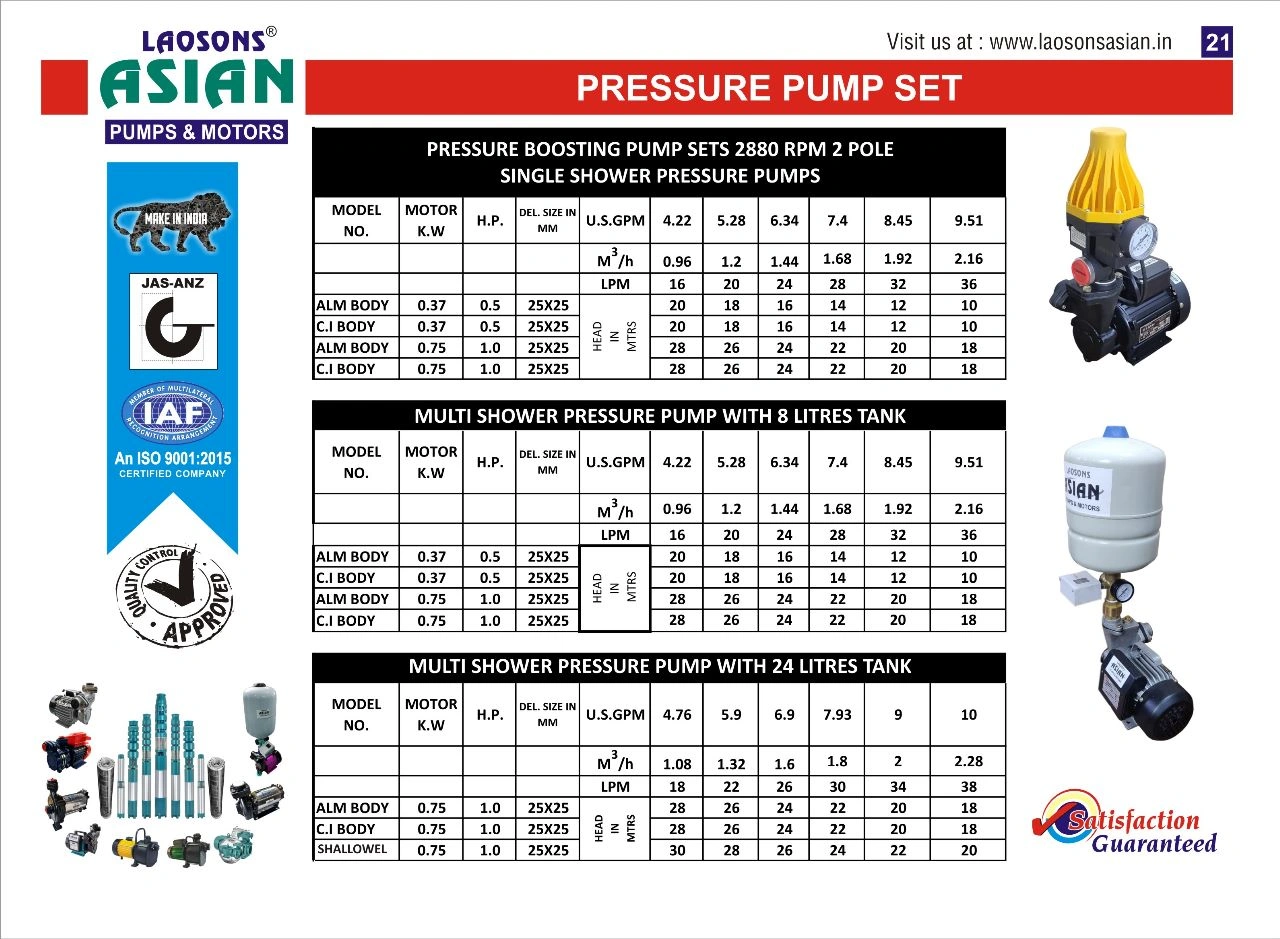

Single Shower Pressure Pump

Laosonsasian Single Shower Pressure boosting Series are the product of the expertise gained from over four decades of experience, endurance and workmanship. laosonsasian products are engineered to perfection with utmost care and stringent quality control at all stages to ensure a trouble free service.

Pressure tank is one another reliable product from the house of laosonsasian having over 1 decades of expertise in pump industry . Pressure tanks are ingeniously designed with perfection for delivering optimal performance. The butyl/natural rubber membrane provided in all the models ensures finer and trouble free performance. These tanks are used for pressure boosting applications to fetch self-sustained supply of pressurized water in the pipeline evermore especially in houses, apartments & hotels.

Pressure tank eliminates the need of overhead tanks & float switch. The electro mechanical control, switches ON & OFF the pump automatically whenever pressure reaches the minimum & maximum level of preset pressure. The smaller capacity tanks are vertical in shape, which can be fixed direclly to the outlet of the pump, whereas bigger capacity tanks are horizontal / vertical in shape with legs and the pumps can be fitted over the platform provided on the top. A 5 way connector , electro mechanical control, hose connector & pressure gauge are the· common accessories used along with the pressure tanks. The pressure can be preset.

The pressure will be developed In the membrane based on the maximum operating head (in bars) of the pump.

Features

➤ Sets free from operating the pump every time

➤ Eliminates need of overhead tank &float switch.

➤ High quality food grade rubber membrane for hygiene water supply.

➤ Ensure uninterrupted water supply with adequate pressure always

➤ Saves water , electricity & time.

➤ High quality and long life mechanical seal.

➤ Designed for easy installation.

➤ Electronic Pressure Control Switch is yet another quality & reliable product from the house of which is carefully designed to regulate the water pressure in the domestic water supply system. It switches ON the pump automatically whenever there is a pressure drop in the pipeline and maintains preset level of pressure in the pipe line. It also switches off the pump automatically whenever pumping is not required and there by makes the entire pumping system effective and efficient. The preset pressure level drops as and when the water is drawn. Likewise once the pipeline is closed it completely switches OFF the pump automatically after few seconds. The inbuilt check valve & logic circuit system protect the pump from back flow of water & dry running which enhance the life span of the pump. Certain models of vertical type pressure controls are inbuilt with adjustable pressure gauge wherein the pressure can be set manually based on the requirement.

Single Shower Pressure Pump
